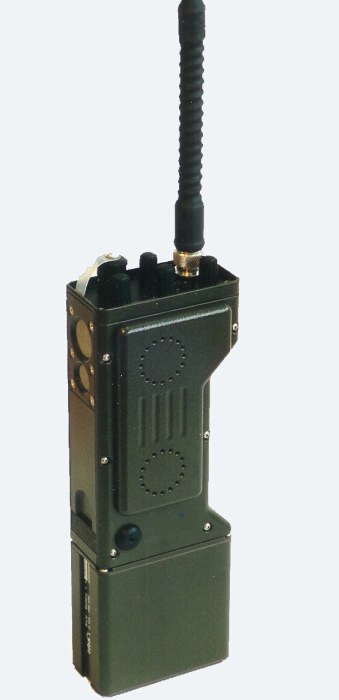

FSG7016 UHF AM Hand Held Transceiver

FSG7016
FSG-7016 TECHNICAL SPECIFICATIONS
Leading Particulars
Frequency Range: 225.000 MHz to 399.975 MHz  = 7,000 channels
Frequency Selection:16 preset channels
Transmitter outputs: 3 selectable 1W,  0.4 W, or  0.1 W.
 Operating Mode: Simplex
 Modulation: AM  A3E, 350 - 3,000 Hz
 Power Supply:Detachable, rechargeable 12 Vdc nickel-cadmium battery pack,
1,400 mAh, with built-in temperature sensor. External 10 Vdc to 15 Vdc via 10-pole
accessory connector, input current 1.2A maximum.Switched 12 Vdc output for attached
accessories, drain 150Ma maximum. Input Current:   Standby (Standby): 42 Ma,
RX: 150 am, TX: 0.4- 1.2 A

Transmitter Characteristics:
Power Output: Preset 0.1 W /0.4 W /1.0 W or RX mode only, programmed together with channel frequency.
Frequency Accuracy: £+ 2.5 ppm (max. + 1 kHz), O°C to +40o/32°F to 104°F
£+ 5 ppm (max. + 2 kHz), -20°C to +60°C/-4°F to 140°F
Spurious/Harmonic Radiation: -60 dBc/50 Ohm
Carrier Noise level:  ³40 dB, 1 kHz, 75% modulation
Adjacent Channel Suppression: > -75 dB at > + 25 kHz, 60% mod. +10 dB/1
,250 Hz
Modulation AF Response: 350- 3,000 Hz < -6 dB (0 dB = 1 kHz)
Modulation Distortion:£10% at 90% modulation, 400 Hz ... 3,000 Hz
Modulation Capability:  Built-in modulation compressor, 0> 80% AM at 300 MHz, O°C to
+40°C / 32°F to 104 of > 70% AM at 225 MHz... 340 MHz, -20°C to +60°C / -4°F to 140°F
Modulation AF Input level:      0.5 mV to 10 mV for >75% AM, adjustable in 7 steps
 Duty Cycle:Transmit Time-Out- Timer limits transmission electronically to 5 minutes to
save battery capacity, and to prevent blocked channel.
Receiver Characteristics:
Sensitivity: £1mV / -107dBm for 6dB S+N/N
Selectivity: ³ 8 kHz/ -6 dB
Spurious Frequency Rejection: ³ -70 dB, including IF image rejection
Audio Power Output: ³ 1W (internal speaker)
Physical and Environmental Data:
Overall Dimensions: 75 x 38 x 225 mm (WxDxH), without antenna2.95" x 1.5" x 8.86" (WxDxH), without antenna 1.2 kg (2.6 lb.), including battery, removable/adjustable
carrying strap and helical antenna
Operating Temperature Range:-20°C to +60°C / -4°F to 140°F
Slightly Degraded Performance: -30°C to +60°C / -22°F to 140°F
Charging Temperature Range: +10°C to +40°C /50°F to 104°F
Submersible (with antenna attached): 1.0 m (3 ft) for 30




The FSG7016 is made by Walter Dittel are used worldwide by  various military and other organizations requiring a rugged and extremely reliable hand held UHF AM  military band transceiver.

We can supply a full line of ancillaries including batteries, battery chargers ,antennas, microphone  and spares.

We supply these sets  already  programmed to you choice of up to the maximum of  16  preset channels.

 Contact us for a complete price list or a formal  quotation.
